Hose Module

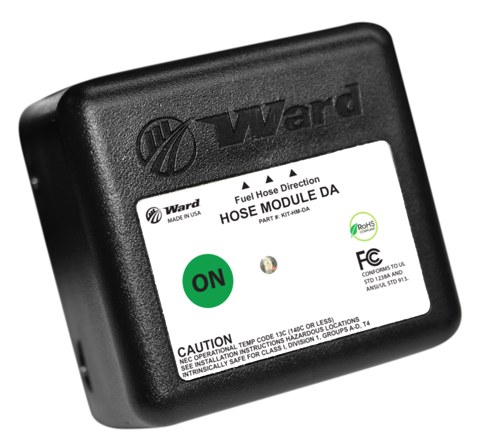

hose module dual antenna automate fuel management access

Attached to the fuel nozzle, the dual antenna Hose Module reads data from a Fuel Tag installed on any asset that consumes fuel. In addition, built-in security features ensure fueling is for only the authorized asset.

The user-friendly operation allows the driver to pull up to the fuel dispenser, remove the nozzle from its cradle, insert it into the vehicle’s filler neck, and press the ON button. Once activated, the Hose Module transmits the asset’s data to the Ward Fuel Control Terminal for authorization via encrypted 2.4 GHz wireless communication.

When the Hose Module is removed from the filler neck, communication with the Fuel Tag is severed and the pump shuts off, terminating the transaction.

View PDF

KEY FEATURES

  • 100% secure
  • Mounts on any fuel nozzle
  • Dual antenna for flexible
    Fuel Tag placement
  • Push-button activation
    only, and lithium battery
    for long life
  • Compatible with fast and slow-fill CNG nozzles
  • Rugged construction for extreme conditions
Communication EM interface with the Fuel Tag, Ring Antenna, and SimplyFuel Toolkit (SFT) programming dongle
Long Range Hose Module to IoT FCT: Max distance is 100’; longer range is dependent on having a clear line
of sight between the nozzle and FCT.
Hose Module to SFT: <4”
Temperature -40° F to 185° F
(-40° C to 60° C)
Dimensions 2.5 x 2.3 x 1.5 inches (W x D x H)
Certifications UL
