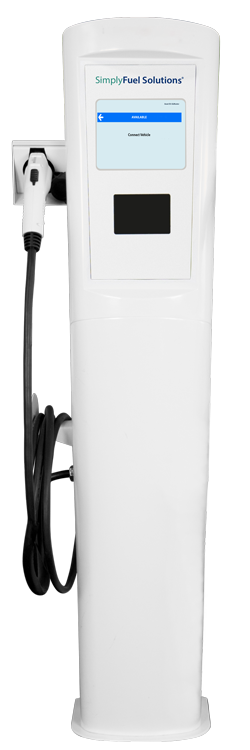

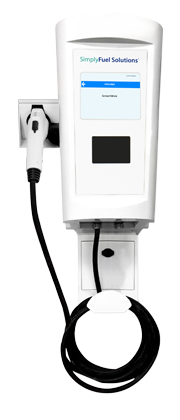

Level 2 MaX EV Charger
The revolutionary L2 MaX has the ability for the dual port model to charge at 80 amp on two ports simultaneously. This is a first in the industry and a significant benefit to fleet operators for trucks and/or buses due to its ability to rapidly charge larger batteries and two vehicles simultaneously. Depending on battery capacity, consumer vehicles can receive a satisfactory charge within two to three hours.
AC L2 MaX EV 7-20kW charger is ideal for charging where there is ample, planned downtime. Level 2 chargers are easy to install, affordable, and great for all size vehicles.
The L2 MaX Charger allows for Multi-tiered energy pricing (time-of-use tariffs) and multi-tiered parking pricing for currents up to 70A, which allows ultimate freedom in choosing the right pricing strategy for each use case.
Fully calibrated, tested, and sealed, the L2 MaX is ready for installation for commercial purposes (certain RSA activities may need to be performed).
Vehicle Compatibility
A distinguishing feature of the L2 MaX is the widespread testing across a range of vehicle models, makes and types, allowing for quick product integration with back-end providers. SimplyFuel Solutions offers its customers one of the widest integration networks available for software compatibility between vehicles and chargers.
Integrated Fleet Charger Management
Access options run from fully-automated EV charging station access using a Ward Fuel Control Terminal with customized access methods based on your unique fleet or business needs. Track electric usage through Fuel View fuel management software and passive vehicle telematics or live with Geotab or Samsara.
L2 Max Charger Applications
Government Fleets
Commercial Fleets
Workplace
Commercial Parking

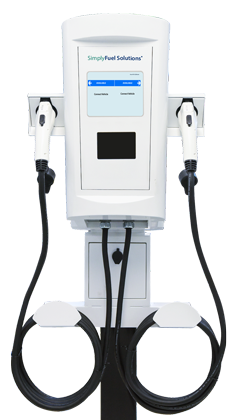

- Dual Ports rate for 30 / 40 Amps (each)
- SA J1772 Charging Protocol
- NEMA 3R Housing
- 7″ Color LCD Screen
- RFID, Credit Card

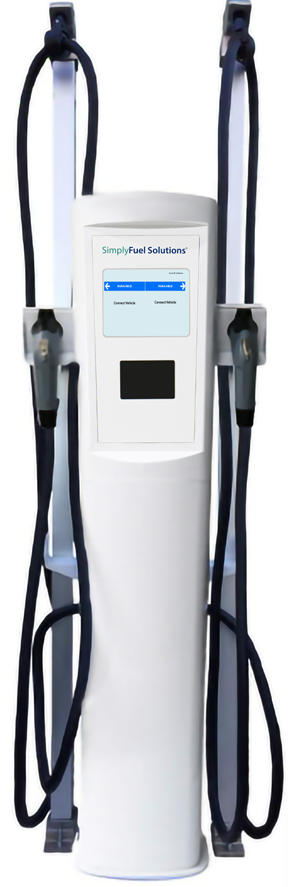

- Cable retraction option
Input Voltage | 208/240 VAC |
Input Current | 16A, 30A, 40A |
Input Power Connections | Line1, Line2, Earth required service panel breaker, 16A/20A, 30A/40A, 40A/50A (current/breaker) Dual station requires two feeds |
Electrical Output | 16A, 30A, 40A available |
Output Charging Power | 3.3kW, 7.2 kW, 9.6kW |
Output Voltage | 208/240 VAC |
Output Charging Connector | SAE J1772, 18 ft Cable |
Ground Fault Detection | 20mA CCID with automatic retry at 15-minute intervals, totaling three tries |
Plug-Out Detection | Power terminated per SAE J1772 specifications |
Power Measurement | Revenue grade energy metering |
Optional Networks | TCP/IP CAT 5/6, Wi-Fi, Zigbee, Cellular |
Operating Temperature | -30°C to +55°C |
Terminal Block Temperature Rating | +100°C |
Operating Humidity | 90% RH, non-condensing |
Enclosure | NEMA 3R |
Safety Compliance | ETL Listed for US and Canada; Complies with UL 2594, UL 2231-1,UL 2231-2 Surge Protection 6kV at 3000 VAC |
EMC Compliance | FCC Part 15 Class A |
