Tank Level Sensors
OMNTEC Tank Monitoring Compliance Solutions

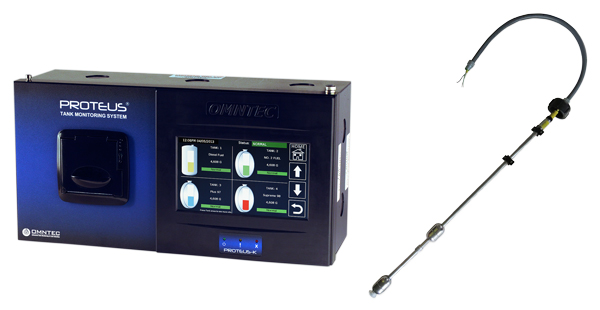

PROTEUS Tank Level series simultaneously monitors product levels, water levels, temperature, leaks, and over-fill situations – making it the ideal choice for fleet fueling applications. Advanced technology delivers unmatched versatility, scalability, and operational ease previously unseen in the industry.
OMNTEC distinguishes itself through the adaptability and reliability of cost-effective products and rugged designs built for durability. With over 30 years of meeting customer Compliance and Operational needs. PROTEUS series of ATGs also delivers advanced system interrogation tools, advanced overfill, and cross-fuel contamination functions.
Unmatched extended services and support are standard and include free direct OMNTEC help desk access for the life of the product, direct support via Ward, as well as certified third-party Service Organizations that blanket the US.
Fully vetted integration solution with Ward’s Fuel Management System

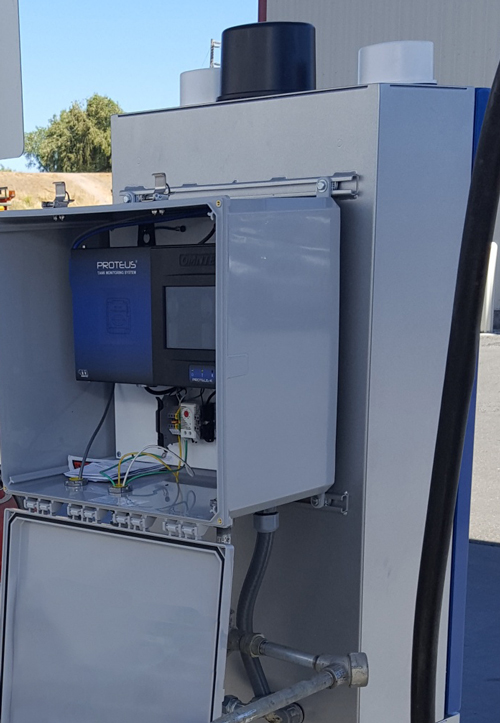

OMNTEC Tank Level Sensors are integrated with Ward Fuel Control Terminals and Fuel View software for seamless remote tank monitoring above or below ground hard-to-reach locations. Multiple configurations are available for communication, offering both economical and advanced solutions.
Series Features
- Intuitive user interface
- Wireless and cellular integration
- Solution specific solutions
- SD card capable of upwards of 30 years of data storage
- Intuitive user interface
- Self-diagnosing microprocessor sensors
- Intuitive user interface
- Wireless and cellular integration
- Solution specific solutions
- SD card capable of upwards of 30 years of data storage
- Intuitive user interface
- Self-diagnosing microprocessor sensors
- Free web server for remote viewing (includes email and text features)
| Electrical Input | 100‐240 VAC +/‐ 10% 50/60 Hz 60 |
| Voltage to Sensors | 12 VDC |
| Voltage to Probes | 28 VDC |
| Relay Outputs | 120 VAC @ 0.6 amp resistive 3 SPST Failsafe |
| Low‐voltage Outputs | 12 VDC @ 150 mA |
| Operating Temperature | 20 to 140° F (‐7° to 60° C) |
| Weight | 20 lbs (9 kg) |
| Dimensions | 7.73 x 15.21 x 5.53 inches (H x W x D) |
| Audio Visual Controls | |
| Display | 7‐inch color graphic display touch screen |
| Audible alarm | 85 dB piezoelectric horn |
| System status | 3 LED’s (OK, warning, alarm) |
| Ratings | UL and CUL |
PROTEUS X
PROTEUS X is the most feature-rich ATG in the industry. Capabilities include everything seen in the PROTEUS K and more. The PROTEUS X monitors up to 40 tanks for inventory, 64 independent leak points, and meets compliance requirements to monitor over fill. An internal card gauge allows for customization to meet specific site needs and scalability to expand when needed.
PROTEUS PK
The PROTEUS PK controller has proven reliability, advanced technology, versatility, scalability, and enhanced features packaged with inventory only probes, stainless steel floats, and AST Cap Assembly Kit to offer an economical solution for monitoring above ground storage tanks.
PROTEUS K
PROTEUS K is an oil-water separator-specific solution and the workhorse in the Fleet Fueling industry. It monitors up to eight tanks for Inventory, 16 independent leak points, and meets compliance requirements to monitor overfill.
